Nodegrid Bold SR

Empower all-in-one edge networking with a package that’s smaller, lighter, & bolder

Whether you’re in telecom, retail, or oil & gas, deploy the Bold SR for the functionality & control you need.

This lightweight box allows you to connect more than a dozen devices & add-ons, so you can deliver robust capabilities throughout your enterprise. The Bold SR puts you in charge with remote out-of-band management, Secure Access Service Edge, and SD-Branch capabilities.



  • Reduce CAPEX & virtualize your stack
  • Cut support costs & response times with remote out-of-band
  • Set up autonomous networking to prevent downtime

Your lightweight solution for colossal capabilities

Secure your branch networks and more using the Nodegrid Bold SR. Sporting a number of high-density interfaces and powerful ethernet ports, the Bold SR offers versatility anywhere you deploy. From delivering failover & out-of-band to your NOC, to handling every function at your faraway network edge, Bold is your compact solution for all-in-one networking.

Set your network to Bold

With internals like a multi-core Intel CPU and patented Nodegrid OS, Bold SR is a powerful open platform that adjusts in lockstep with your demands. Virtualize your stack with your choice of SD-WAN, firewall, IoT, and other applications, and extend your capabilities wherever you deploy Bold.

Does a new location require hard security & high availability?

Use a single Bold SR to host virtualized firewall & routing apps.

Do you need dependable backup connectivity at HQ?

Deploy your Bold SR equipped with dual-SIM cellular failover.

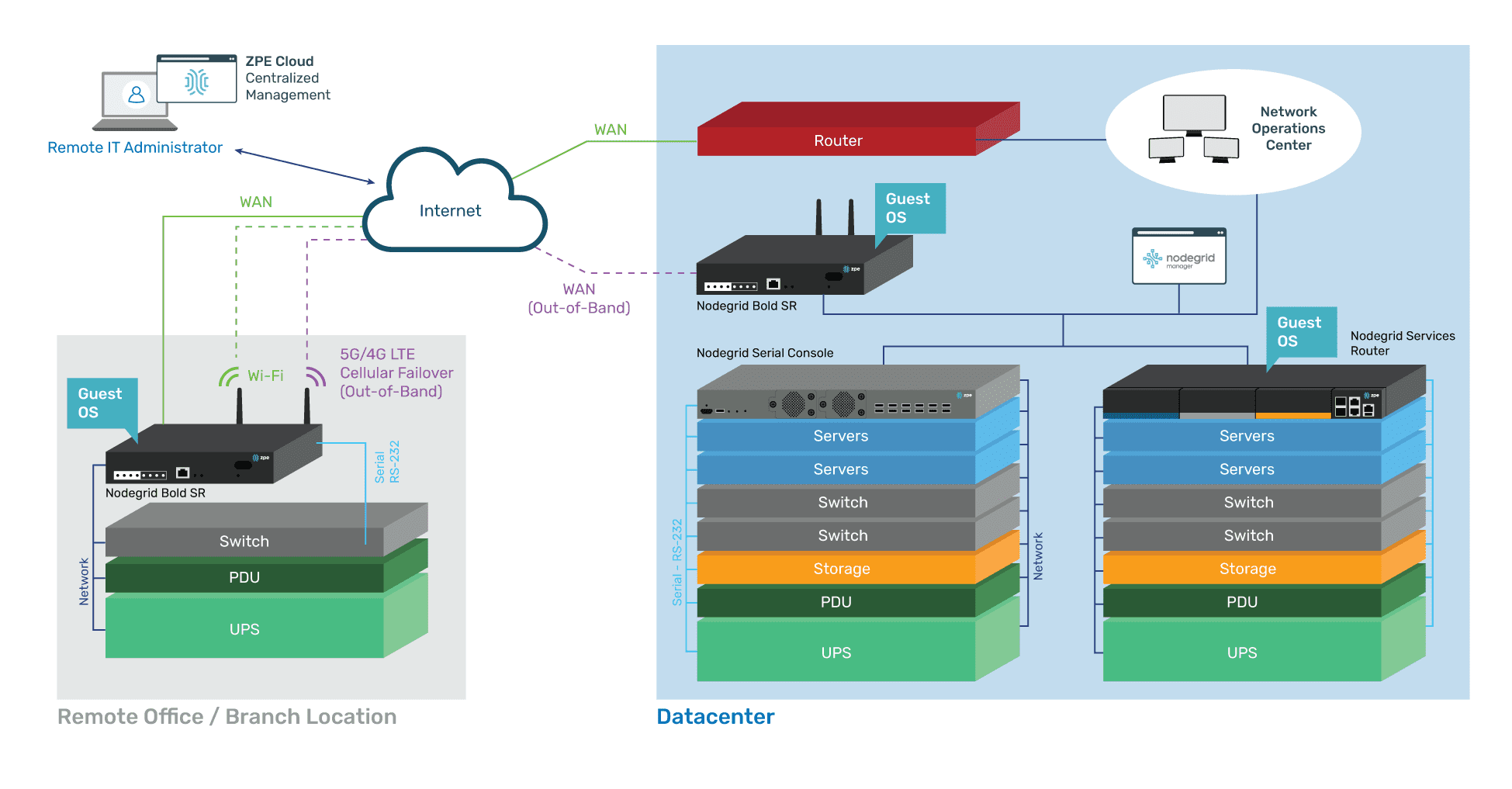

Nodegrid Bold SR serves as a perfect solution to keeping remote locations functioning properly. With Nodegrid, accessing devices at the EDGE of the network is not only easy, but also safe and secure. With the ability to add Wi-Fi connectivity and 4G LTE failover, locations without IT personnel on staff are just a simple session away from resolution.

Software

Software

  • Nodegrid OS for direct 3rd-party app hosting, VNFs, & Docker & Kubernetes containers
  • Nodegrid Manager — use your browser for fast, secure access to your network
  • Built-in firewall, VPN, & IPSec for secure traffic and safe access
  • Plug-n-play capability that automatically discovers your network configuration
  • Automation support to enable self-healing & autonomous networking
Hardware

Hardware

  • More than a dozen ports for connecting all your devices
  • Wi-Fi ready via internal card or external USB, for hotspot & client access
  • Routing and switching capabilities to further reduce your stack
  • Gb-throughput ethernet ports for faster, streamlined integration
  • Two, dual-SIM 4G/LTE cellular failover slots to prevent downtime
dc resilience 650 x 400

Network down?

Nodegrid’s cellular failover has you covered

The Nodegrid SR family’s advanced cellular module delivers backup connectivity that’s reliable, fast, & automatic.

  • Get global coverage via 4G LTE & 3G fallback
  • Make business unstoppable with blazing Cat-12 speeds
  • Save your peace of mind thanks to 4x carrier redundancy

Pre-Validated Virtualized Network Functions ready to deploy on Nodegrid

Deploy Nodegrid SR devices and get seamless customization with these pre-validated apps. Virtualize for what you need, from efficient SD-WAN & firewall applications, to right-fit guest OS & management solutions.

We’re always adding more, so take your pick and let Nodegrid do the rest.

PALogo
Fortinet
SAP
128T
Juniper
Windows

Features

  • Software Defined Networking, Network Function Virtualization and Docker capabilities
  • 2 x 4G/LTE with Dual SIM Slots for Redundant Network Failover (optional 4G/LTE USB modem support)
  • Out-of-Band Access Normalization, Control and Monitoring for EDGE devices
  • Routing and Switching Capabilities, VPN, IPSEC, and Firewall built-in
  • Horizontal & Vertical Scaling and Auto-discovery Configuration
  • Policy-based Authentication, Authorization and Auditing
  • Automatic Event Tracking and Actionable Data
  • Multi-port Hardware and Multi-vendor devices
  • Wi-Fi ready (via internal card or external USB) for hotspot or client
  • 4 x Gb Ethernet ports with:
    • Multiple Routing Table capability
    • Interface Bonding for Failover / Throughput
    • Bridge Mode for Cascading Network Devices

Specifications

Hardware Specifications
CPU
  • Intel x86_64 Multi-Core
  • Memory & Storage
  • 4 GB of DDR3 DRAM, 32 GB SATA SSD
  • Interfaces
  • 8 RJ45 Serial ports
  • 1 RS-232 serial console port on RJ45
  • 1 Gigabit (10/100/1000BT) Ethernet interfaces on RJ45
  • 4 Gigabit (10/100/1000BT) Ethernet interfaces on RJ45 with Built-in Switch
  • 2 USB 3.0 Host on Type A
  • 2 USB 2.0 Hosts on Type A
  • 1 Wi-Fi – optional
  • 2 Cellular Slots with Dual SIM – Optional
  • 1 VGA port
  • Warranty
  • 2 Years
  • Software Specifications
    Port Access
  • Direct access by port name, TCP port, device name and IPv4/IPv6
  • High performance port login: <1 sec on SSH, <3 sec on Telnet
  • 1,000+ simultaneous sessions
  • Port sharing
  • Command line interface (CLI)
  • Port custom field support, port icon configuration, port search
  • Device clustering across multiple Nodegrid units
  • DeviceURL™ bookmarks, FireTrail™ secure tunnels
  • Break-over SSH support
  • System Management
  • Extensible automated control based on actionable real-time data
  • Web GUI management portal, command line interface (CLI), Linux root shell
  • Zero Touch Provisioning for configuration and firmware updates
  • Multiple and customizable user levels of access
  • Auto-discovery via network scan
  • NTP support, global time zone support
  • SNMP
  • Access Protocols
  • HTTPS, SSHv1 and SSHv2, optional HTTP and Telnet
  • Device View Options
  • Tree, Table, Geo Map, Node and WEB with NodeIQ™ natural language search
  • Security
  • X.509 SSH certificate support, 4096-bit encryption keys
  • Selectable cryptographic protocols for SSH and HTTPS (TLSv1.2, TLSv1.1, TLSv1)
  • Selectable cypher suite levels: high, medium, low, custom
  • SSL VPN – Client and Server
  • IPsec with support for multi sites
  • Local, AD/LDAP, RADIUS, TACACS+, Kerberos authentication
  • Local, backup-user authentication support
  • User-access lists per port
  • Group/role-based authorization: AD/LDAP, RADIUS, TACACS+
  • Fine grain and role based access control
  • Firewall – IP packet and security filtering, IP forwarding support
  • MD5 / SHA System Configuration Checksum™
  • System event syslog
  • Custom security settings
  • Strong password enforcement
  • Operating System
  • Built-in 64-bit Linux kernel 4.x and Yocto-based CustomKit™ SDK
  • Infrastructure Specifications
    Power
  • 12 VDC via external 100–240 VAC, 50/60 Hz adapter
  • Power consumption 25 W typical
  • Physical
  • Front-Rear mounting brackets
  • Size (L x W x H): 142 x 201 x 44 mm (5.5 x 7.9 x 1.73 in)
  • Weight: 1.2 kg (2.6 lb)
  • Shipping weight: 2.3 kg (5.0 lb)
  • Shipping (L x W x H): 313 x 313 x 140 mm (12.3 x 12.3 x 5.5 in)
  • Environmental
  • Operation: -20 to 50° C (-4 to 122° F), 20-90% RH, non-cond.
  • Storage: -20 to 67° C (-4 to 153° F), 10-90% RH, non-cond.
  • Ordering Information

    Channel SKU
    Description
    CPU
    Memory
    Power
    Special
    ZPE-BSR-24-Base
    ZPE Nodegrid Bold SR. 8X RJ45 Serial rolled, 5X GbE, 2-core Intel 64bit CPU, 4GB DDR4, 32GB SLC. Single AC Power supply & cord included. Go to ZPEcloud.com to activate 90-day free subscription. Includes Standard 2-Year Support & HW warranty
    2 Cores
    4 GB
    AC Adaptor
    Base
    ZPE-BSR-24-W5
    ZPE Nodegrid Bold SR. 8X RJ45 Serial rolled, 5X GbE, 2-core Intel 64bit CPU, 4GB DDR4, 32GB SLC, Wi-Fi 5 (866Mbps 2X2 dual stream 802.11ac). Single AC Power supply & cord included. Go to ZPEcloud.com to activate 90-day free subscription. Includes Standard 2-Year Support & HW warranty.
    2 Cores
    4 GB
    AC Adaptor
    Wi-Fi
    ZPE-BSR-24-4G
    ZPE Nodegrid Bold SR. 8X RJ45 Serial rolled, 5X GbE, 2-core Intel 64bit CPU, 4GB DDR4, 32GB SLC, 4G LTE (CAT12) Single AC Power supply & cord included. Go to ZPEcloud.com to activate 90-day free subscription. Includes Standard 2-Year Support & HW warranty.
    2 Cores
    4 GB
    AC Adaptor
    4G
    ZPE-BSR-24-4G-W5
    ZPE Nodegrid Bold SR. 8X RJ45 Serial rolled, 5X GbE, 2-core Intel 64bit CPU, 4GB DDR4, 32GB SLC, 4G LTE (CAT12), Wi-Fi 5 (866Mbps 2X2 dual stream 802.11ac). Single AC Power supply & cord included. Go to ZPEcloud.com to activate 90-day free subscription. Includes Standard 2-Year Support & HW warranty.
    2 Cores
    4 GB
    AC Adaptor
    4G, Wi-Fi
    ZPE-BSR-24-4G-W5-D128G
    ZPE Nodegrid Bold SR. 8X RJ45 Serial rolled, 5X GbE, 2-core Intel 64bit CPU, 4GB DDR4, 32GB SLC, 4G LTE (CAT12), Wi-Fi 5 (866Mbps 2X2 dual stream 802.11ac), Disk2:128GB to host third-party applications. Single AC Power supply & cord included. Go to ZPEcloud.com to activate 90-dayfree subscription. Includes Standard 2-Year Support & HW warranty.
    2 Cores
    4 GB
    AC Adaptor
    4G, Wi-Fi, Second Storage
    ZPE-BSR-48-Base
    ZPE Nodegrid Bold SR. 8X RJ45 Serial rolled, 5X GbE, 4-core Intel 64bit CPU, 8GB DDR4, 32GB SLC. Single AC Power supply & cord included. Go to ZPEcloud.com to activate 90-day free subscription. Includes Standard 2-Year Support & HW warranty.
    4 Cores
    8 GB
    AC Adaptor
    Base
    ZPE-BSR-48-W5
    ZPE Nodegrid Bold SR. 8X RJ45 Serial rolled, 5X GbE, 4-core Intel 64bit CPU, 8GB DDR4, 32GB SLC, Wi-Fi 5 (866Mbps 2X2 dual stream 802.11ac). Single AC Power supply & cord included. Go to ZPEcloud.com to activate 90-day free subscription. Includes Standard 2-Year Support & HW warranty.
    4 Cores
    8 GB
    AC Adaptor
    Wi-Fi
    ZPE-BSR-48-4G
    ZPE Nodegrid Bold SR. 8X RJ45 Serial rolled, 5X GbE, 4-core Intel 64bit CPU, 8GB DDR4, 32GB SLC, Wi-Fi 5 (866Mbps 2X2 dual stream 802.11ac). Single AC Power supply & cord included. Go to ZPEcloud.com to activate 90-day free subscription. Includes Standard 2-Year Support & HW warranty.
    4 Cores
    8 GB
    AC Adaptor
    4G
    ZPE-BSR-48-4G-W5
    ZPE Nodegrid Bold SR. 8X RJ45 Serial rolled, 5X GbE, 4-core Intel 64bit CPU, 8GB DDR4, 32GB SLC, 4G LTE (CAT12), Wi-Fi 5 (866Mbps 2X2 dual stream 802.11ac). Single AC Power supply & cord included. Go to ZPEcloud.com to activate 90-day free subscription. Includes Standard 2-Year Support & HW warranty.
    4 Cores
    8 GB
    AC Adaptor
    4G, Wi-Fi
    ZPE-BSR-48-4G-W5-D128G
    ZPE Nodegrid Bold SR. 8X RJ45 Serial rolled, 5X GbE, 4-core Intel 64bit CPU, 8GB DDR4, 32GB SLC, 4G LTE (CAT12), Wi-Fi 5 (866Mbps 2X2 dual stream 802.11ac), Disk2:128GB to host third-party applications. Single AC Power supply & cord included. Go to ZPEcloud.com to activate 90-day free subscription. Includes Standard 2-Year Support & HW warranty.
    4 Cores
    8 GB
    AC Adaptor
    4G, Wi-Fi, Second Storage

    Accessories

    Accessory
    Description
    AC Adaptor
    Mini PCI Wi-Fi
    M2-CELL
    M.2 Cellular 4G/LTE with Dual SIM
