Nodegrid Link SR

Get the right networking, right where you need it with one powerful little box

The Nodegrid Link SR brings flexibility to your network operations. Its powerful components deliver customizable networking wherever you need it, while its compact design can be tucked away to save crucial space. Link server rooms, closets, and branch locations to the internet, and get critical services to keep your network running.

  • Deploy fast using zero touch provisioning and ZPE Cloud
  • Stay in control even during outages with OOB via cellular failover
  • Manage every device thanks to vendor-neutral Nodegrid Manager software
LSR-Angled Nodegrid Link SR

Your link to versatile networking

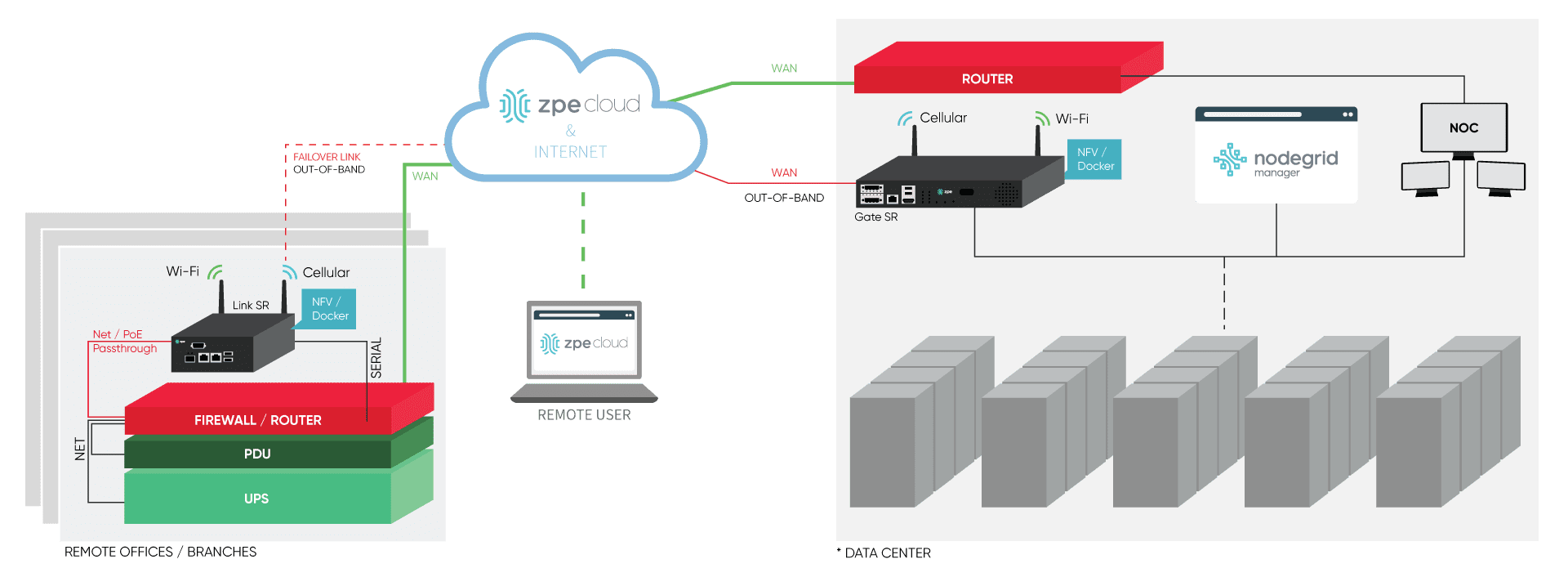

Deploy the Link SR to provide routing, security, failover, and other services. The Link SR features PoE for versatile power options, and can even serve as a reliable Wi-Fi access point using dual antennas. It features the Nodegrid OS running on powerful x86 architecture, bringing the network function virtualization, out-of-band management, and automation capabilities you rely on.

Deploy your Link anywhere

The Link is the tiniest in the Nodegrid SR family, but it offers many of the same capabilities as its bigger siblings. It allows you to deploy third-party applications, Docker containers, orchestration scripts, and more, for connectivity that’s customized to you.

Does your underground server room lack cellular connectivity?

Deploy the Link SR on the surface to deliver reliable service.

Do you need OOB access to a closet in your faraway branch?

Connect the Link SR and get remote control of your stack.
Nodegrid Link SR serves as a perfect solution to keeping remote BRANCH locations functioning properly. With the ZPE Cloud, deploying and provisioning your remote devices is fast, consistent and secure.

Nodegrid Link SR allows for 24 x 7 remote present at the EDGE of the network. With the ability to add Wi-Fi connectivity and 4G LTE failover, locations without IT personnel on staff are just a simple session away from resolution.

Software

Software

  • Nodegrid OS for hosting 3rd-party apps, VNFs, & Docker & Kubernetes containers
  • Nodegrid Manager — access & control your network using simply your browser
  • Built-in firewall, encryption, cypher suite levels, and configuration checksum
  • HTML5 cross-device web access (free yourself from Java!)
  • Orchestration via Puppet, Ansible, Chef, and other common languages
Hardware

Hardware

  • DHCP to give you more IP addresses or replace your current router altogether
  • Flexible, high-density interfaces for ease of integration
  • Cellular gateway and Wi-Fi AP for complete connectivity
  • Dual-SIM 4G/LTE cellular failover to keep you outage-proof
  • Power via adapter or PoE, giving you ultimate versatility
dc resilience 650 x 400

Network down?

Nodegrid’s cellular failover has you covered

The Nodegrid SR family’s advanced cellular module delivers backup connectivity that’s reliable, fast, & automatic.

  • Get global coverage via 4G LTE & 3G fallback
  • Make business unstoppable with blazing Cat-12 speeds
  • Save your peace of mind thanks to 4x carrier redundancy

Pre-Validated Virtualized Network Functions ready to deploy on Nodegrid

Deploy Nodegrid SR devices and get seamless customization with these pre-validated apps. Virtualize for what you need, from efficient SD-WAN & firewall applications, to right-fit guest OS & management solutions.

We’re always adding more, so take your pick and let Nodegrid do the rest.

PALogo
Fortinet
SAP
128T
Juniper
Windows

Features

  • Secure, fast and consistent deployments across your branches with the ZPE Cloud
  • Combines Cellular gateway and Wi-Fi Access Point (AP) with power in via PoE or power adapter
  • Software Defined Networking, Network Function Virtualization, Guest OS, Kubernetes, and Docker capabilities
  • Minimizes MTTR, downtime and expenses with secure, centralized remote device access & control
  • Increases site reliability with open industry standard hardware, and easy-to-use software
  • Zero Touch Provisioning (ZTP) for fast and easy setup in remote locations
  • Integrates with ZPE Cloud and ZPE Systems Nodegrid Manager vendor-neutral, unified management solution
  • Direct Linux shell, HTML5 cross-device web access and command line interface
  • Modern 64-bit Linux Kernel for fast security patching and widespread software availability
  • Kubernetes and Docker-optimized for quick, flexible script and application integration
  • Extended Automation based on actionable real-time data
  • Failover to 4G/LTE modem
  • Linkway and multi-routing table capability
  • SSL VPN and IPsec
  • DHCP server – extra IPs for your remote site or replace your current router altogether
  • Firewall – built in and turns on with a checkbox
  • Secure – selectable encrypted cryptographic protocols and cypher suite levels, configuration checksum™
  • Power control and monitoring – get alerts on suboptimal IT device health before malfunctions occur and solve problems automatically
  • Orchestration – Puppet, Chef, Ansible, RESTful and ZPE Cloud
  • High density and flexibile interfaces for greater connectivity

Specifications

Hardware Specifications
CPU
  • Multi-core Intel x86_64bit CPU
  • Memory & Storage
  • 4-8GB of DDR3 DRAM, 16GB Hardware EncryptedSSD
  • Interfaces
  • 1 x SFP (1G)
  • 1 x Gigabit (10/100/1000BT) Ethernet Interface on RJ45 with PoE in
  • 2 x GPIO Port
  • 2 x Digital Out Port
  • 2 x USB 2.0 Hosts on Type A
  • 1 x Wi-Fi – optional
  • 1 x Cellular Slot with Dual SIM – Optional
  • 1 x VGA port
  • Software Specifications
    Port Access
  • Direct access by port name, TCP port, device name and IPv4/IPv6
  • High performance port login: <1 sec on SSH, <3 sec on Telnet
  • 350+ simultaneous sessions
  • Port sharing
  • Command line interface (CLI)
  • Port custom field support, port icon configuration, port search
  • Device clustering across multiple Nodegrid units
  • Break-over SSH support
  • System Management
  • Extensible automated control based on actionable real-time data
  • Web GUI management portal, command line interface (CLI), Linux root shell
  • Zero Touch Provisioning for configuration and firmware updates
  • Multiple and customizable user levels of access
  • Auto-discovery via network scan
  • NTP support, global time zone support
  • SNMP
  • Orchestration Integration: Puppet, Chef, Ansible, RESTful, ZPE Cloud, and Nodegrid Manager
  • Access Protocols
  • HTTPS, SSHv1 and SSHv2, optional HTTP and Telnet
  • Device View Options
  • Tree, Table, Geo Map, Node and WEB with search capability
  • Integrates with ZPE Cloud
  • Security
  • X.509 SSH certificate support, 4096-bit encryption keys
  • Selectable cryptographic protocols for SSH and HTTPS (TLSv1.2, TLSv1.1, TLSv1)
  • Selectable cypher suite levels: high, medium, low, custom
  • SSL VPN – Client and Server
  • IPsec with support for multi sites
  • Local, AD/LDAP, RADIUS, TACACS+, Kerberos authentication
  • Local, backup-user authentication support
  • User-access lists per port
  • Group/role-based authorization: AD/LDAP, RADIUS, TACACS+
  • Fine grain and role based access control
  • Firewall – IP packet and security filtering, IP forwarding support
  • MD5 / SHA System Configuration Checksum™
  • System event syslog and data logs
  • Custom security settings
  • Strong password enforcement
  • Operating System
  • Built-in 64-bit Linux kernel (Nodegrid OS)
  • Infrastructure Specifications
    Power
  • 10-57V DC input
  • PoE-in
  • Power consumption 20W typical
  • Physical
  • DIM Rail and Wall Mountable
  • Size (L x W x H): 170 x 130 x 55 mm (6.69 x 5.11 x 2.16 in)
  • Weight: 1.04 kg (2.3 lbs)
  • Shipping weight: 1.58 kg (3.5 lbs)
  • Shipping (L x W x H): 228.65 x 342.9 x 88.9mm (9 x 13.5 x 3.5 in)
  • Environmental
  • Operation: 0 to 60° C (32 to 140° F), 20-90% RH, non-cond.
  • Storage: -20 to 67° C (-4 to 153° F), 10-90% RH, non-cond.
  • Ordering Information

    Channel SKU
    Description
    CPU
    Memory
    Power
    Special
    ZPE-LSR-24-Base
    ZPE Nodegrid Link SR. 1 RJ45 Serial rolled, 1 ETH (PoE in), 1 SFP, 2 GPIO, 2 OUT, X86_64, 2-Cores, 4GB DDR3, Disk1: 16GB, 1 VGA. PoE & Single 10V-57V DC input. AC Power Adaptor not included. Order ZPE-LSR-PSU separately. Order ZPE Cloud & app subscription. Includes Standard 2-Year Support, HW warranty, & 90-day ZPECloud.com subscription.
    2 Cores
    4 GB
    AC, DC, PoE
    Base
    ZPE-LSR-24-W5
    ZPE Nodegrid Link SR. 1 RJ45 Serial rolled, 1 ETH (PoE in), 1 SFP, 2 GPIO, 2 OUT, X86_64, 2-Cores, 4GB DDR3, Disk1: 16GB, 1 VGA. With addition of: Wi-Fi 5 (866Mbps 2X2 dual stream 802.11ac). PoE & Single 10V-57V DC input. AC Power Adaptor not included. Order ZPE-LSR-PSU separately. Order ZPE Cloud & app subscription. Includes Standard 2-Year Support, HW warranty, & 90-day ZPECloud.com subscription.
    2 Cores
    4 GB
    AC, DC, PoE
    Wi-Fi
    ZPE-LSR-24-4G
    ZPE Nodegrid Link SR. 1 RJ45 Serial rolled, 1 ETH (PoE in), 1 SFP, 2 GPIO, 2 OUT, X86_64, 2-Cores, 4GB DDR3, Disk1: 16GB, 1 VGA. With addition of: Antennas & 4G/LTE (CAT12) radio. PoE & Single 10V-57V DC input. AC Power Adaptor not included. Order ZPE-LSR-PSU separately. Order ZPE Cloud & app subscription. Includes Standard 2-Year Support, HW warranty, & 90-day ZPECloud.com subscription.
    2 Cores
    4 GB
    AC, DC, PoE
    4G
    ZPE-LSR-24-4G-W5
    ZPE Nodegrid Link SR. 1 RJ45 Serial rolled, 1 ETH (PoE in), 1 SFP, 2 GPIO, 2 OUT, X86_64, 2-Cores, 4GB DDR3, Disk1: 16GB, 1 VGA. With addition of: Wi-Fi 5 (866Mbps 2X2 dual stream 802.11ac) & antennas & 4G/LTE (CAT12) radio with dual-SIM. PoE & Single 10V-57V DC input. AC Power Adaptor not included. Order ZPE-LSR-PSU separately. Order ZPE Cloud & app subscription. Includes Standard 2-Year Support, HW warranty, & 90-day ZPECloud.com subscription.
    2 Cores
    4 GB
    AC, DC, PoE
    4G, Wi-Fi
    ZPE-LSR-24-4G-W5-D128G
    ZPE Nodegrid Link SR. 1 RJ45 Serial rolled, 1 ETH (PoE in), 1 SFP, 2 GPIO, 2 OUT, X86_64, 2-Cores, 4GB DDR3, Disk1: 16GB, 1 VGA. With addition of: Wi-Fi 5 (866Mbps 2X2 dual stream 802.11ac) & antennas & 4G/LTE (CAT12) radio with dual-SIM & dedicated 128GB Disk2 for VM/Docker applications. PoE & Single 10V-57V DC input. AC Power Adaptor not included. Order ZPE-LSR-PSU separately. Order ZPE Cloud & app subscription. Includes Standard 2-Year Support, HW arranty, & 90-day ZPECloud.com subscription.
    2 Cores
    4 GB
    AC, DC, PoE
    4G, Wi-Fi, Second Storage
    ZPE-LSR-48-Base
    ZPE Nodegrid Link SR. 1 RJ45 Serial rolled, 1 ETH (PoE in), 1 SFP, 2 GPIO, 2 OUT, X86_64, 4-Cores, 8GB DDR3, Disk1: 16GB, 1 VGA. PoE & Single 10V-57V DC input. AC Power Adaptor not included. Order ZPE-LSR-PSU eparately. Order ZPE Cloud & app subscription. Includes Standard 2-Year Support, HW warranty, & 90-day ZPECloud.com subscription.
    4 Cores
    8 GB
    AC, DC, PoE
    Base
    ZPE-LSR-48-W5
    ZPE Nodegrid Link SR. 1 RJ45 Serial rolled, 1 ETH (PoE in), 1 SFP, 2 GPIO, 2 OUT, X86_64, 4-Cores, 8GB DDR3, Disk1: 16GB, 1 VGA. With addition of: Wi-Fi 5 (866Mbps 2X2 dual stream 802.11ac). PoE & Single 10V-57V DC input. AC Power Adaptor not included. Order ZPE-LSR-PSU separately. Order ZPE Cloud & app subscription. Includes Standard 2-Year Support, HW warranty, & 90-day ZPECloud.com subscription.
    4 Cores
    8 GB
    AC, DC, PoE
    Wi-Fi
    ZPE-LSR-48-4G
    ZPE Nodegrid Link SR. 1 RJ45 Serial rolled, 1 ETH (PoE in), 1 SFP, 2 GPIO, 2 OUT, X86_64, 4-Cores, 8GB DDR3, Disk1: 16GB, 1 VGA. With addition of: Antennas & 4G/LTE (CAT12) radio. PoE & Single 10V-57V DC input. AC Power Adaptor not included. Order ZPE-LSR-PSU separately. Order ZPE Cloud & app subscription. Includes Standard 2-Year Support, HW warranty, & 90-day ZPECloud.com subscription.
    4 Cores
    8 GB
    AC, DC, PoE
    4G
    ZPE-LSR-48-4G-W5
    ZPE Nodegrid Link SR. 1 RJ45 Serial rolled, 1 ETH (PoE in), 1 SFP, 2 GPIO, 2 OUT, X86_64, 4-Cores, 8GB DDR3, Disk1: 16GB, 1 VGA. With addition of: Wi-Fi 5 (866Mbps 2X2 dual stream 802.11ac) & antennas & 4G/LTE (CAT12) radio with dual-SIM. PoE & Single 10V-57V DC input. AC Power Adaptor not included. Order ZPE-LSR-PSU separately. Order ZPE Cloud & app subscription. Includes Standard 2-Year Support, HW warranty, & 90-day ZPECloud.com subscription.
    4 Cores
    8 GB
    AC, DC, PoE
    4G, Wi-Fi
    ZPE-LSR-48-4G-W5-D128G
    ZPE Nodegrid Link SR. 1 RJ45 Serial rolled, 1 ETH (PoE in), 1 SFP, 2 GPIO, 2 OUT, X86_64, 4-Cores, 8GB DDR3, Disk1: 16GB, 1 VGA. With addition of: Wi-Fi 5 (866Mbps 2X2 dual stream 802.11ac) & antennas & 4G/LTE (CAT12) radio with dual-SIM & dedicated 128GB Disk2 for VM/Docker applications. PoE & Single 10V-57V DC input. AC Power Adaptor not included. Order ZPE-LSR-PSU separately. Order ZPE Cloud & app subscription. Includes Standard 2-Year Support, HW arranty, & 90-day ZPECloud.com subscription.
    4 Cores
    8 GB
    AC, DC, PoE
    4G, Wi-Fi, Second Storage

    Accessories

    Accessory
    Description
    LSR-PSU
    12VDC external 100-240 VAC, 50/60 Hz power adapter
    PCI-WIFI-B
    Mini PCI Wi-Fi with dual antennas and cables
    M2-CELL-B
    M.2 Cellular – 4G/LTE with dual-SIM slots, antennas and cables
    LSR-SATA
    SATA Storage Expansion Kit (HDD/SDD not included)
