Nodegrid Serial Console Plus
Scale critical infrastructure with speed and reliability built-in
The Nodegrid Serial Console Plus (NSCP) helps scale your data center and critical remote infrastructure without management obstacles or downtime.
Connect 16, 32, 48, or 96 (Patent No. 9,905,980) serial devices and quickly scale to millions of nodes. Dual SFP+ and dual Ethernet ports keep data free from slowdowns, while the multi-core Intel CPU delivers blazing responsiveness. Built-in 5G/4G LTE and Wi-Fi options give you reliable cellular failover and secure out-of-band access, so you can keep it all online all the time.
Nodegrid Serial Console Plus (NSCP-T96R-STND-DDC)
Nodegrid Serial Console Plus (NSCP-T96R-STND-DAC)
Nodegrid Serial Console – Video Overview
What’s New?
- More accessibility via dual SFP+ and dual Ethernet interfaces
- More speed with Intel CPU that’s 10x faster than the competition
- More reliability via 5G/4G LTE & Wi-Fi modules for failover & out-of-band
Why Nodegrid Serial Console Is the Right Choice?
Download the Nodegrid Serial Console Router data sheet. You’ll get all the details about what makes this compact device your gateway to smooth deployments & easy management.
Download the data sheet to see how you can:
- Product details & specifications
- Hardware features
- Solution benefits
Why Nodegrid Serial Console Plus?

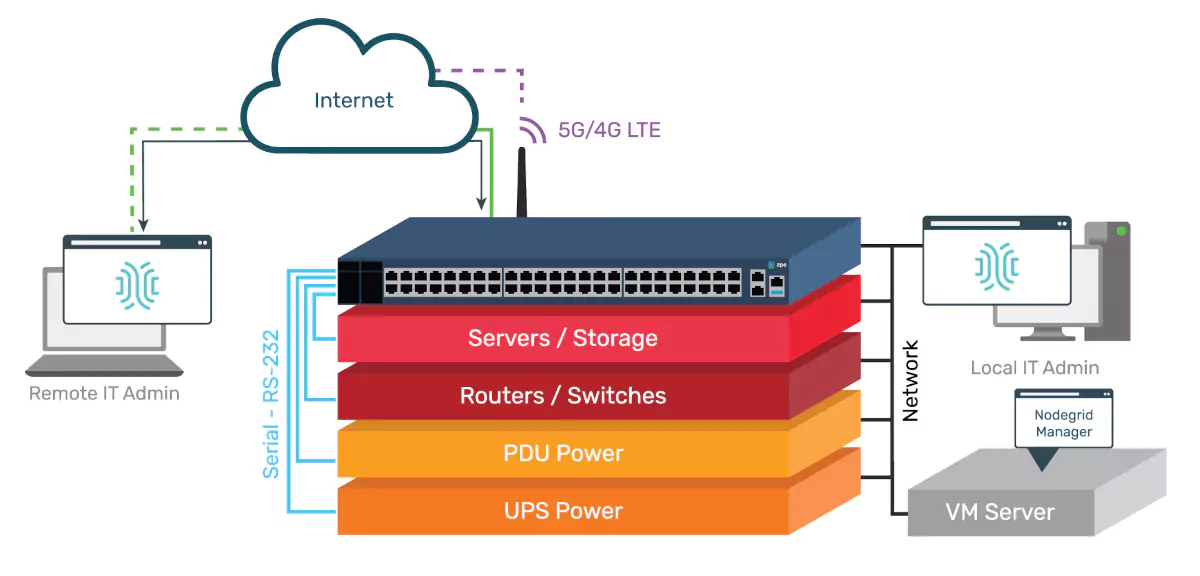

Nodegrid Serial Console Plus gives you high-density, Gen 3 out-of-band (OOB) connectivity in a 1U box. With the vendor-neutral NSCP, you can scale fast and manage diverse infrastructures through a single point of control, whether at the data center or colocation hub. NSCP also gives you built-in reliability via 5G/4G LTE and Wi-Fi capabilities, so you don’t have to shop around for additional failover or out-of-band solutions.
Benefits
- Reduces CAPEX and OPEX expenses with a consolidated, extensible solution and automated management
- Minimizes MTTR, downtime, and trips to the data center with secure, centralized, instant remote device access and control.
- Increases site reliability with open, industry-standard hardware and easy-to-use software
- Supports fast, cost-efficient scaling with automated deployments, even in mixed environments
Simple & Fast
No more waiting! The Nodegrid Serial Console device is easy to deploy and configure. Its lightning-fast, multi-core x86-64 CPU, large memory, SSD, and Linux-based Nodegrid OS can handle 1,000+ concurrent sessions, allowing for more operations, users, and I/O than any other console server.
Secure & Sustainable
The NSCP keeps your information secure by blending existing policy-based enterprise AD/LDAP/SAML authentication and authorization with the latest in cryptographic protocols and cipher suite levels, threat prevention, up-to-date SSL and SSH data encryption, IP filtering, secure boot, self-encrypted disk, TPM, and a system configuration checksum.
Reliable & Scalable
Nodegrid is deployed by the biggest tech and financial companies in the world. It was designed by award-winning console industry veterans and built using reliable, open, and modular industry-standard hardware components.
Available Port Configurations
| SKU | Description |
|---|---|
| ZPE-NSCP-T16R-STND-SAC | ZPE Nodegrid Serial Console Plus. 16-port Cisco Rolled, Single AC, 4-Core Intel CPU, 4GB DDR4, 32GB SSD, 2 SFP+, 2 GbE, 2 USB 3.0, 1 HDMI, 1 console |
| ZPE-NSCP-T16R-STND-DAC | ZPE Nodegrid Serial Console Plus. 16-port Cisco Rolled, Dual AC, 4-Core Intel CPU, 4GB DDR4, 32GB SSD, 2 SFP+, 2 GbE, 2 USB 3.0, 1 HDMI, 1 console |
| ZPE-NSCP-T16R-STND-DDC | ZPE Nodegrid Serial Console Plus. 16-port Cisco Rolled, Dual DC, 4-Core Intel CPU, 4GB DDR4, 32GB SSD, 2 SFP+, 2 GbE, 2 USB 3.0, 1 HDMI, 1 console |
| ZPE-NSCP-T16R-STND-SAC-W5 | ZPE Nodegrid Serial Console Plus. 16-port Cisco Rolled, Single AC, 4-Core Intel CPU, 4GB DDR4, 32GB SSD, 2 SFP+, 2 GbE, 2 USB 3.0, 1 HDMI, 1 console. Wi-Fi 5 (2X2 Dual Stream) |
| ZPE-NSCP-T16R-STND-DAC-W5 | ZPE Nodegrid Serial Console Plus. 16-port Cisco Rolled, Dual AC, 4-Core Intel CPU, 4GB DDR4, 32GB SSD, 2 SFP+, 2 GbE, 2 USB 3.0, 1 HDMI, 1 console. Wi-Fi 5 (2X2 Dual Stream) |
| ZPE-NSCP-T16R-STND-DDC-W5 | ZPE Nodegrid Serial Console Plus. 16-port Cisco Rolled, Dual DC, 4-Core Intel CPU, 4GB DDR4, 32GB SSD, 2 SFP+, 2 GbE, 2 USB 3.0, 1 HDMI, 1 console. Wi-Fi 5 (2X2 Dual Stream) |
| ZPE-NSCP-T16R-STND-SAC-4G | ZPE Nodegrid Serial Console Plus 16-port Cisco Rolled, Single AC, 4-Core Intel CPU, 4GB DDR4, 32GB SSD, 2 SFP+, 2 GbE, 2 USB 3.0, 1 HDMI, 1 console, 4G/LTE (CAT 12) |
| ZPE-NSCP-T16R-STND-DAC-4G | ZPE Nodegrid Serial Console Plus 16-port Cisco Rolled, Dual AC, 4-Core Intel CPU, 4GB DDR4, 32GB SSD, 2 SFP+, 2 GbE, 2 USB 3.0, 1 HDMI, 1 console, 4G/LTE (CAT 12) |
| ZPE-NSCP-T16R-STND-DDC-4G | ZPE Nodegrid Serial Console Plus 16-port Cisco Rolled, Dual DC, 4-Core Intel CPU, 4GB DDR4, 32GB SSD, 2 SFP+, 2 GbE, 2 USB 3.0, 1 HDMI, 1 console, 4G/LTE (CAT 12) |
| ZPE-NSCP-T16R-STND-SAC-W5-4G | ZPE Nodegrid Serial Console Plus 16-port Cisco Rolled, Single AC, 4-Core Intel CPU, 4GB DDR4, 32GB SSD, 2 SFP+, 2 GbE, 2 USB 3.0, 1 HDMI, 1 console, Wi-Fi 5 (2X2 dual stream) & 4G/LTE (CAT 12) |
| ZPE-NSCP-T16R-STND-DAC-W5-4G | ZPE Nodegrid Serial Console Plus 16-port Cisco Rolled, Dual AC, 4-Core Intel CPU, 4GB DDR4, 32GB SSD, 2 SFP+, 2 GbE, 2 USB 3.0, 1 HDMI, 1 console, Wi-Fi 5 (2X2 dual stream) & 4G/LTE (CAT 12) |
| ZPE-NSCP-T16R-STND-DDC-W5-4G | ZPE Nodegrid Serial Console Plus 16-port Cisco Rolled, Dual DC, 4-Core Intel CPU, 4GB DDR4, 32GB SSD, 2 SFP+, 2 GbE, 2 USB 3.0, 1 HDMI, 1 console, Wi-Fi 5 (2X2 dual stream) & 4G/LTE (CAT 12) |
| SKU | Description |
|---|---|
| ZPE-NSCP-T32R-STND-SAC | ZPE Nodegrid Serial Console Plus. 32-port Cisco Rolled, Single AC, 4-Core Intel CPU, 4GB DDR4, 32GB SSD, 2 SFP+, 2 GbE, 2 USB 3.0, 1 HDMI, 1 console |
| ZPE-NSCP-T32R-STND-DAC | ZPE Nodegrid Serial Console Plus. 32-port Cisco Rolled, Dual AC, 4-Core Intel CPU, 4GB DDR4, 32GB SSD, 2 SFP+, 2 GbE, 2 USB 3.0, 1 HDMI, 1 console |
| ZPE-NSCP-T32R-STND-DDC | ZPE Nodegrid Serial Console Plus. 32-port Cisco Rolled, Dual DC, 4-Core Intel CPU, 4GB DDR4, 32GB SSD, 2 SFP+, 2 GbE, 2 USB 3.0, 1 HDMI, 1 console |
| ZPE-NSCP-T32R-STND-SAC-W5 | ZPE Nodegrid Serial Console Plus. 32-port Cisco Rolled, Single AC, 4-Core Intel CPU, 4GB DDR4, 32GB SSD, 2 SFP+, 2 GbE, 2 USB 3.0, 1 HDMI, 1 console. Wi-Fi 5 (2X2 Dual Stream) |
| ZPE-NSCP-T32R-STND-DAC-W5 | ZPE Nodegrid Serial Console Plus. 32-port Cisco Rolled, Dual AC, 4-Core Intel CPU, 4GB DDR4, 32GB SSD, 2 SFP+, 2 GbE, 2 USB 3.0, 1 HDMI, 1 console. Wi-Fi 5 (2X2 Dual Stream) |
| ZPE-NSCP-T32R-STND-DDC-W5 | ZPE Nodegrid Serial Console Plus. 32-port Cisco Rolled, Dual DC, 4-Core Intel CPU, 4GB DDR4, 32GB SSD, 2 SFP+, 2 GbE, 2 USB 3.0, 1 HDMI, 1 console. Wi-Fi 5 (2X2 Dual Stream) |
| ZPE-NSCP-T32R-STND-SAC-4G | ZPE Nodegrid Serial Console Plus 32-port Cisco Rolled, Single AC, 4-Core Intel CPU, 4GB DDR4, 32GB SSD, 2 SFP+, 2 GbE, 2 USB 3.0, 1 HDMI, 1 console, 4G/LTE (CAT 12) |
| ZPE-NSCP-T32R-STND-DAC-4G | ZPE Nodegrid Serial Console Plus 32-port Cisco Rolled, Dual AC, 4-Core Intel CPU, 4GB DDR4, 32GB SSD, 2 SFP+, 2 GbE, 2 USB 3.0, 1 HDMI, 1 console, 4G/LTE (CAT 12) |
| ZPE-NSCP-T32R-STND-DDC-4G | ZPE Nodegrid Serial Console Plus 32-port Cisco Rolled, Dual DC, 4-Core Intel CPU, 4GB DDR4, 32GB SSD, 2 SFP+, 2 GbE, 2 USB 3.0, 1 HDMI, 1 console, 4G/LTE (CAT 12) |
| ZPE-NSCP-T32R-STND-SAC-W5-4G | ZPE Nodegrid Serial Console Plus 32-port Cisco Rolled, Single AC, 4-Core Intel CPU, 4GB DDR4, 32GB SSD, 2 SFP+, 2 GbE, 2 USB 3.0, 1 HDMI, 1 console, Wi-Fi 5 (2X2 dual stream) & 4G/LTE (CAT 12) |
| ZPE-NSCP-T32R-STND-DAC-W5-4G | ZPE Nodegrid Serial Console Plus 32-port Cisco Rolled, Dual AC, 4-Core Intel CPU, 4GB DDR4, 32GB SSD, 2 SFP+, 2 GbE, 2 USB 3.0, 1 HDMI, 1 console, Wi-Fi 5 (2X2 dual stream) & 4G/LTE (CAT 12) |
| ZPE-NSCP-T32R-STND-DDC-W5-4G | ZPE Nodegrid Serial Console Plus 32-port Cisco Rolled, Dual DC, 4-Core Intel CPU, 4GB DDR4, 32GB SSD, 2 SFP+, 2 GbE, 2 USB 3.0, 1 HDMI, 1 console, Wi-Fi 5 (2X2 dual stream) & 4G/LTE (CAT 12) |
| SKU | Description |
|---|---|
| ZPE-NSCP-T48R-STND-SAC | ZPE Nodegrid Serial Console Plus. 48-port Cisco Rolled, Single AC, 4-Core Intel CPU, 4GB DDR4, 32GB SSD, 2 SFP+, 2 GbE, 2 USB 3.0, 1 HDMI, 1 console |
| ZPE-NSCP-T48R-STND-DAC | ZPE Nodegrid Serial Console Plus. 48-port Cisco Rolled, Dual AC, 4-Core Intel CPU, 4GB DDR4, 32GB SSD, 2 SFP+, 2 GbE, 2 USB 3.0, 1 HDMI, 1 console |
| ZPE-NSCP-T48R-STND-DDC | ZPE Nodegrid Serial Console Plus. 48-port Cisco Rolled, Dual DC, 4-Core Intel CPU, 4GB DDR4, 32GB SSD, 2 SFP+, 2 GbE, 2 USB 3.0, 1 HDMI, 1 console |
| ZPE-NSCP-T48R-STND-SAC-W5 | ZPE Nodegrid Serial Console Plus. 48-port Cisco Rolled, Single AC, 4-Core Intel CPU, 4GB DDR4, 32GB SSD, 2 SFP+, 2 GbE, 2 USB 3.0, 1 HDMI, 1 console. Wi-Fi 5 (2X2 Dual Stream) |
| ZPE-NSCP-T48R-STND-DAC-W5 | ZPE Nodegrid Serial Console Plus. 48-port Cisco Rolled, Dual AC, 4-Core Intel CPU, 4GB DDR4, 32GB SSD, 2 SFP+, 2 GbE, 2 USB 3.0, 1 HDMI, 1 console. Wi-Fi 5 (2X2 Dual Stream) |
| ZPE-NSCP-T48R-STND-DDC-W5 | ZPE Nodegrid Serial Console Plus. 48-port Cisco Rolled, Dual DC, 4-Core Intel CPU, 4GB DDR4, 32GB SSD, 2 SFP+, 2 GbE, 2 USB 3.0, 1 HDMI, 1 console. Wi-Fi 5 (2X2 Dual Stream) |
| ZPE-NSCP-T48R-STND-SAC-4G | ZPE Nodegrid Serial Console Plus 48-port Cisco Rolled, Single AC, 4-Core Intel CPU, 4GB DDR4, 32GB SSD, 2 SFP+, 2 GbE, 2 USB 3.0, 1 HDMI, 1 console, 4G/LTE (CAT 12) |
| ZPE-NSCP-T48R-STND-DAC-4G | ZPE Nodegrid Serial Console Plus 48-port Cisco Rolled, Dual AC, 4-Core Intel CPU, 4GB DDR4, 32GB SSD, 2 SFP+, 2 GbE, 2 USB 3.0, 1 HDMI, 1 console, 4G/LTE (CAT 12) |
| ZPE-NSCP-T48R-STND-DDC-4G | ZPE Nodegrid Serial Console Plus 48-port Cisco Rolled, Dual DC, 4-Core Intel CPU, 4GB DDR4, 32GB SSD, 2 SFP+, 2 GbE, 2 USB 3.0, 1 HDMI, 1 console, 4G/LTE (CAT 12) |
| ZPE-NSCP-T48R-STND-SAC-W5-4G | ZPE Nodegrid Serial Console Plus 48-port Cisco Rolled, Single AC, 4-Core Intel CPU, 4GB DDR4, 32GB SSD, 2 SFP+, 2 GbE, 2 USB 3.0, 1 HDMI, 1 console, Wi-Fi 5 (2X2 dual stream) & 4G/LTE (CAT 12) |
| ZPE-NSCP-T48R-STND-DAC-W5-4G | ZPE Nodegrid Serial Console Plus 48-port Cisco Rolled, Dual AC, 4-Core Intel CPU, 4GB DDR4, 32GB SSD, 2 SFP+, 2 GbE, 2 USB 3.0, 1 HDMI, 1 console, Wi-Fi 5 (2X2 dual stream) & 4G/LTE (CAT 12) |
| ZPE-NSCP-T48R-STND-DDC-W5-4G | ZPE Nodegrid Serial Console Plus 48-port Cisco Rolled, Dual DC, 4-Core Intel CPU, 4GB DDR4, 32GB SSD, 2 SFP+, 2 GbE, 2 USB 3.0, 1 HDMI, 1 console, Wi-Fi 5 (2X2 dual stream) & 4G/LTE (CAT 12) |
| SKU | Description |
|---|---|
| ZPE-NSCP-T96R-STND-SAC | ZPE Nodegrid Serial Console Plus. 96-port Cisco Rolled, Single AC, 4-Core Intel CPU, 4GB DDR4, 32GB SSD, 2 SFP+, 2 GbE, 2 USB 3.0, 1 HDMI, 1 console |
| ZPE-NSCP-T96R-STND-DAC | ZPE Nodegrid Serial Console Plus. 96-port Cisco Rolled, Dual AC, 4-Core Intel CPU, 4GB DDR4, 32GB SSD, 2 SFP+, 2 GbE, 2 USB 3.0, 1 HDMI, 1 console |
| ZPE-NSCP-T96R-STND-DDC | ZPE Nodegrid Serial Console Plus. 96-port Cisco Rolled, Dual DC, 4-Core Intel CPU, 4GB DDR4, 32GB SSD, 2 SFP+, 2 GbE, 2 USB 3.0, 1 HDMI, 1 console |
| ZPE-NSCP-T96R-STND-SAC-W5 | ZPE Nodegrid Serial Console Plus. 96-port Cisco Rolled, Single AC, 4-Core Intel CPU, 4GB DDR4, 32GB SSD, 2 SFP+, 2 GbE, 2 USB 3.0, 1 HDMI, 1 console. Wi-Fi 5 (2X2 Dual Stream) |
| ZPE-NSCP-T96R-STND-DAC-W5 | ZPE Nodegrid Serial Console Plus. 96-port Cisco Rolled, Dual AC, 4-Core Intel CPU, 4GB DDR4, 32GB SSD, 2 SFP+, 2 GbE, 2 USB 3.0, 1 HDMI, 1 console. Wi-Fi 5 (2X2 Dual Stream) |
| ZPE-NSCP-T96R-STND-DDC-W5 | ZPE Nodegrid Serial Console Plus. 96-port Cisco Rolled, Dual DC, 4-Core Intel CPU, 4GB DDR4, 32GB SSD, 2 SFP+, 2 GbE, 2 USB 3.0, 1 HDMI, 1 console. Wi-Fi 5 (2X2 Dual Stream) |
| ZPE-NSCP-T96R-STND-SAC-4G | ZPE Nodegrid Serial Console Plus 96-port Cisco Rolled, Single AC, 4-Core Intel CPU, 4GB DDR4, 32GB SSD, 2 SFP+, 2 GbE, 2 USB 3.0, 1 HDMI, 1 console, 4G/LTE (CAT 12) |
| ZPE-NSCP-T96R-STND-DAC-4G | ZPE Nodegrid Serial Console Plus 96-port Cisco Rolled, Dual AC, 4-Core Intel CPU, 4GB DDR4, 32GB SSD, 2 SFP+, 2 GbE, 2 USB 3.0, 1 HDMI, 1 console, 4G/LTE (CAT 12) |
| ZPE-NSCP-T96R-STND-DDC-4G | ZPE Nodegrid Serial Console Plus 96-port Cisco Rolled, Dual DC, 4-Core Intel CPU, 4GB DDR4, 32GB SSD, 2 SFP+, 2 GbE, 2 USB 3.0, 1 HDMI, 1 console, 4G/LTE (CAT 12) |
| ZPE-NSCP-T96R-STND-SAC-W5-4G | ZPE Nodegrid Serial Console Plus 96-port Cisco Rolled, Single AC, 4-Core Intel CPU, 4GB DDR4, 32GB SSD, 2 SFP+, 2 GbE, 2 USB 3.0, 1 HDMI, 1 console, Wi-Fi 5 (2X2 dual stream) & 4G/LTE (CAT 12) |
| ZPE-NSCP-T96R-STND-DAC-W5-4G | ZPE Nodegrid Serial Console Plus 96-port Cisco Rolled, Dual AC, 4-Core Intel CPU, 4GB DDR4, 32GB SSD, 2 SFP+, 2 GbE, 2 USB 3.0, 1 HDMI, 1 console, Wi-Fi 5 (2X2 dual stream) & 4G/LTE (CAT 12) |
| ZPE-NSCP-T96R-STND-DDC-W5-4G | ZPE Nodegrid Serial Console Plus 96-port Cisco Rolled, Dual DC, 4-Core Intel CPU, 4GB DDR4, 32GB SSD, 2 SFP+, 2 GbE, 2 USB 3.0, 1 HDMI, 1 console, Wi-Fi 5 (2X2 dual stream) & 4G/LTE (CAT 12) |
Nodegrid Features
Features
- Strong Out-of-Band Management integration
- Extensible applications with virtualization and containers
- Zero-Touch Provisioning (ZTP) over the LAN and WAN for fast and easy setup in remote locations
- Integration with the ZPE Cloud and Nodegrid Manager vendor-neutral, unified management solutions
- Modern x86-64bit Linux Kernel for fast security patching and widespread software availability
- Extended Automation based on actionable data
- Failover to 5G/4G LTE and Wi-Fi
- Gateway and multi-routing table capability
- SSL VPN and Secure Tunnel
- DHCP server for extra IPs for your remote site or to replace your current router altogether
- Firewall is built-in and enabled with a checkbox
- Secured with selectable encrypted cryptographic protocols, cipher suite levels, and configuration checksum™
- Power control and monitoring provide alerts on IT device health and solve problems automatically
- Orchestration via Puppet, Chef, Ansible, RESTful
Replace your old serial console devices and save with our trade-in program
Get in touch with a ZPE Systems engineer to set up a demo and see the Nodegrid Serial Console Plus in your environment. When you upgrade, you can save hundreds for every device you trade-in.
