Deploy maximum connectivity to take control of your existing builds
The Nodegrid Serial Console R Series connects you to environments large and small. It’s the perfect serial console to refresh your existing builds comprised of vendor solutions with Cisco-like pin-outs. Featuring up to 96 ports, the R Series helps you maximize control, save space, and deploy custom solutions that suit you.
Discover how NSC refreshes your existing network
Download the Nodegrid Serial Console – R Series data sheet. You’ll see how 1U can transform your legacy environment to give you more control & save resources.
Download the data sheet to see how you can:
- Product details & specifications
- Hardware features
- Solution benefits
Why R Series?
Choose the NSC R Series for high-density connectivity to your environment. Retrofit your builds with this 1U console that offers dozens of connections, from RJ45 & USB serial, to GbE & SFP+ network. The R Series helps you manage more devices, save more resources, and deploy customized solutions on your infrastructure.
Connect it all
The R Series gives you up to 96 ports to help you manage all your devices. Deploy in your hardware-heavy builds and start delivering Nodegrid’s powerful capabilities.
Save time, money, & space
As the world’s most capable 1U serial console, the R Series helps you optimize your rack space. You don’t need to waste time or money reconfiguring your stack or making compromises.
Get right-fit management
The R Series features the built-in Nodegrid OS and comes with a simple software development kit. Host third-party apps, build intuitive solutions, & fully customize your environment.
Available Port Configurations
| Image | SKU | Description |
|---|---|---|
  |

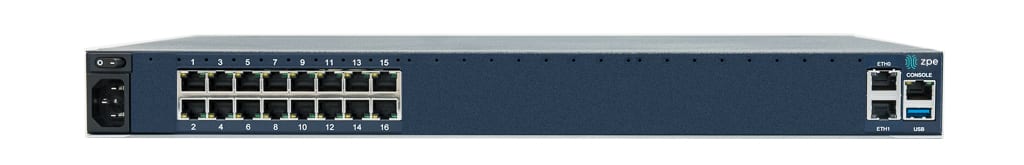

NSC-T16R-STND-SAC | NSC 16-port unit, Cisco pinout, Single AC power supply, 2-Cores, 4GB RAM, 32GB SSD |
|
NSC-T16R-STND-SAC-SFP | NSC 16-port unit, Cisco pinout, Single AC power supply, 2-Cores, 4GB RAM, 32GB SSD, SFP Fiber |
 |

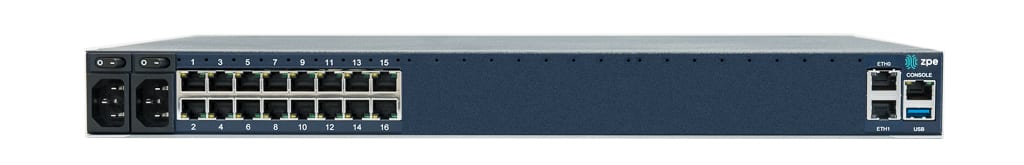

NSC-T16R-STND-DAC | NSC 16-port unit, Cisco pinout, Dual AC power supply, 2-Cores, 4GB RAM, 32GB SSD |
|
NSC-T16R-STND-DAC-SFP | NSC 16-port unit, Cisco pinout, Dual AC power supply, 2-Cores, 4GB RAM, 32GB SSD, SFP Fiber |
|
NSC-T16R-STND-DDC | NSC 16-port unit, Cisco pinout, Dual DC power supply, 2-Cores, 4GB RAM, 32GB SSD |
|
NSC-T16R-STND-DDC-SFP | NSC 16-port unit, Cisco pinout, Dual DC power supply, 2-Cores, 4GB RAM, 32GB SSD, SFP Fiber |
| Image | SKU | Description |
|---|---|---|
  |

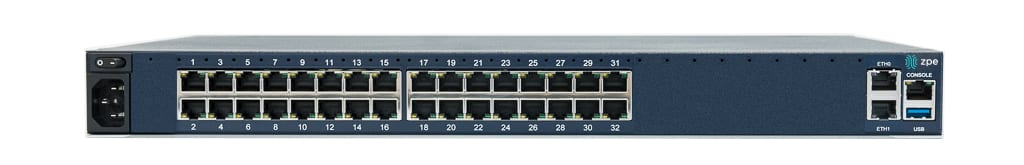

NSC-T32R-STND-SAC | NSC 32-port unit, Cisco pinout, Single AC power supply, 2-Cores, 4GB RAM, 32GB SSD |
 |
NSC-T32R-STND-SAC-SFP | NSC 32-port unit, Cisco pinout, Single AC power supply, 2-Cores, 4GB RAM, 32GB SSD, SFP Fiber |
 |
NSC-T32R-STND-DAC | NSC 32-port unit, Cisco pinout, Dual AC power supply, 2-Cores, 4GB RAM, 32GB SSD |
|
NSC-T32R-STND-DAC-SFP | NSC 32-port unit, Cisco pinout, Dual AC power supply, 2-Cores, 4GB RAM, 32GB SSD, SFP Fiber |
|
NSC-T32R-STND-DDC | NSC 32-port unit, Cisco pinout, Dual DC power supply, 2-Cores, 4GB RAM, 32GB SSD |
|
NSC-T32R-STND-DDC-SFP | NSC 32-port unit, Cisco pinout, Dual DC power supply, 2-Cores, 4GB RAM, 32GB SSD, SFP Fiber |
| Image | SKU | Description |
|---|---|---|
  |
NSC-T48R-STND-SAC | NSC 48-port unit, Cisco pinout, Single AC power supply, 2-Cores, 4GB RAM, 32GB SSD |
 |

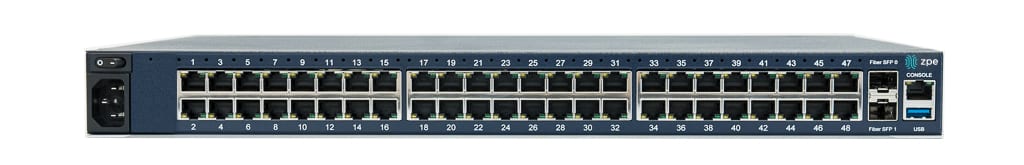

NSC-T48R-STND-SAC-SFP | NSC 48-port unit, Cisco pinout, Single AC power supply, 2-Cores, 4GB RAM, 32GB SSD, SFP Fiber |
 |
NSC-T48R-STND-DAC | NSC 48-port unit, Cisco pinout, Dual AC power supply, 2-Cores, 4GB RAM, 32GB SSD |
 |

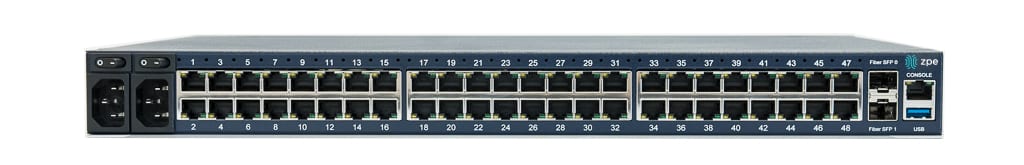

NSC-T48R-STND-DAC-SFP | NSC 48-port unit, Cisco pinout, Dual AC power supply, 2-Cores, 4GB RAM, 32GB SSD, SFP Fiber |
|
NSC-T48R-STND-DDC | NSC 48-port unit, Cisco pinout, Dual DC power supply, 2-Cores, 4GB RAM, 32GB SSD |
|
NSC-T48R-STND-DDC-SFP | NSC 48-port unit, Cisco pinout, Dual DC power supply, 2-Cores, 4GB RAM, 32GB SSD, SFP Fiber |
| Image | SKU | Description |
|---|---|---|
 |
NSC-T96R-STND-SAC | NSC 96-port unit, Cisco pinout, Single AC power supply, 2-Cores, 4GB RAM, 32GB SSD |
|
NSC-T96R-STND-SAC-SFP | NSC 96-port unit, Cisco pinout, Single AC power supply, 2-Cores, 4GB RAM, 32GB SSD, SFP Fiber |
|
NSC-T96R-STND-DAC | NSC 96-port unit, Cisco pinout, Dual AC power supply, 2-Cores, 4GB RAM, 32GB SSD |
|
NSC-T96R-STND-DAC-SFP | NSC 96-port unit, Cisco pinout, Dual AC power supply, 2-Cores, 4GB RAM, 32GB SSD, SFP Fiber |
|
NSC-T96R-STND-DDC | NSC 96-port unit, Cisco pinout, Dual DC power supply, 2-Cores, 4GB RAM, 32GB SSD |
|
NSC-T96R-STND-DDC-SFP | NSC 96-port unit, Cisco pinout, Dual DC power supply, 2-Cores, 4GB RAM, 32GB SSD, SFP Fiber |
Ready to squeeze more power out of 1U?
Request a demo today to unleash your infrastructure with the Nodegrid Serial Console R Series.
